MaxxECU PRO PREMIUM
MaxxECU PRO PREMIUM (ECU, Harness, Accessories & LSU 4.9)
$4568.06
MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control.
Product ID: 2253
- Up to 12 cylinders fully sequentially
- 16 injector outputs (low or high impedance injectors)
- 12 ignition outputs
- 12 inputs for exhaust gas temperature sensors (EGT)
- Built in MAP-sensor for boost pressure up to 3bar (400Kpa)
- Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
- Dual E-Throttle(DBW) support
- Dual knock sensor input
- 16 optional 0-5V inputs
- 6 additional temperature inputs
- 10 additional digital inputs (4 of them can be used with VR sensors)
- 30 auxiliary outputs (GPO), 8 of them +12v outputs
- 2 0-5V output
- 1 5-10v output (sensor output)
- Dual CAN bus
- Waterproof aluminum case
- Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade.
Useful Links
MaxECU Support (Information & Wiring
STS Speed Shop is your local distributor of MaxxECU products.
Products Included:
1 pc 1469 MaxxECU PRO Unit
1 pc 1852 MaxxECU Quick Guide (English)
1 pc 871 MaxxECU V1/RACE/Pro flyer lead wiring harness connector 1
1 pcs 1470
MaxxECU PRO flying lead harness 3m connector 2 (EGT)
1 pcs 1468
MaxxECU PRO flying lead harness 3m connector 3 (cyl 9-16, E-Throttle, extra out)
1 pcs 1467
MaxxECU PRO flying lead harness 3m connector 4 (extra in/out, CAN 2, KNOCK)
2 pcs 2018
Lambda Sensor Bosch wideband lambda LSU 4.9 (0281 004 191)
2 pcs 1533

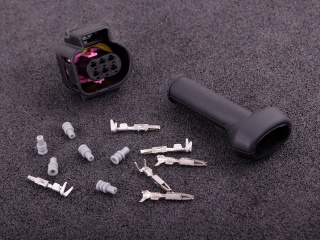

Connector 6-way socket housing (LSU 4.9/5.2 wideband sensor)
1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
1 pcs 949 MaxxECU Bluetooth mobile antenna
1 pcs 1052
MaxxECU extra cable for installations
1 pcs 2214
MaxxECU PRO bracket kit
1 pcs 928
MaxxECU hose kit (MAP sensor incl nipples)
1 pcs 1606
MaxxECU PRO / RACE H2O USB-cable 1.5m
2 pc 1235 MaxxECU sticker
1 pcs 2219
MaxxECU PRO wiring diagram (printed)
